The LSDC Camera

In addition to the LSDC's screening and low vision applications, the LSDC has several other unique features:

Multiply Scattered Imaging Mode

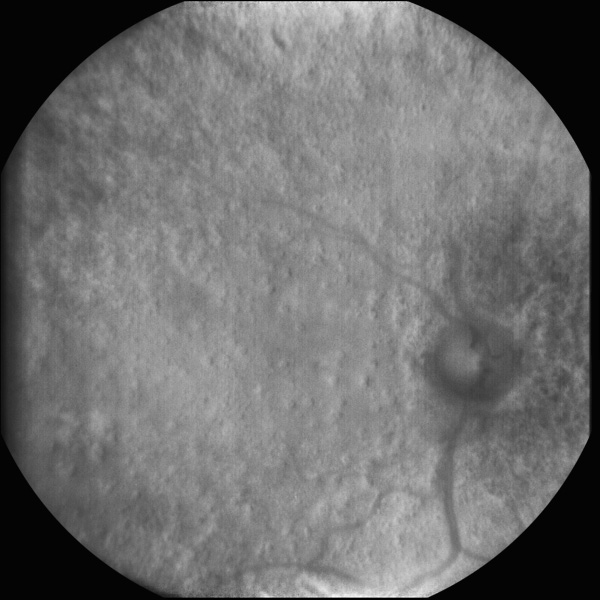

The LS­DC can finely ad­just the off­set of its con­focal aper­ture with re­spect to the il­lu­min­a­tion light on the ret­ina elec­tron­ic­ally in real-time. With a con­focal aper­ture off­set, the LS­DC re­cords im­ages com­posed of mul­tiply scattered light from the deep­er lay­ers of the ret­ina, while re­ject­ing the much stronger dir­ect backs­cat­ter from su­per­fi­cial lay­ers. The res­ult is in­creased sens­it­iv­ity to scat­ter­ing de­fects such as drusen and to the pres­ence of ed­ema.

Refraction Using Structured Illumination Mode

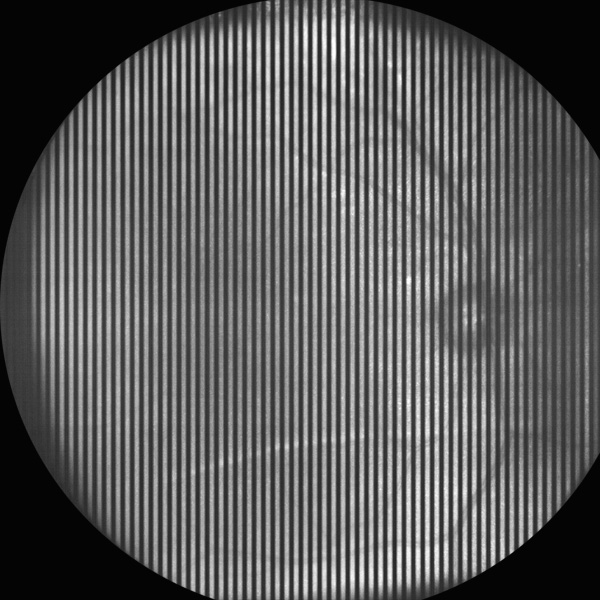

The LS­DC's il­lu­min­a­tion source is more com­monly used in tele­com­mu­nic­a­tion ap­plic­a­tions that re­quire in­tens­ity mod­u­la­tion. In struc­tured il­lu­min­a­tion mode, the source is mod­u­lated while ima­ging, pro­du­cing a se­quence of stripes across the im­age. The con­trast or amp­litude of the stripes meas­ured through-fo­cus provides a loc­al­ized point-spread func­tion. When meas­ured near the fo­vea, this mode provides auto-fo­cus; when com­bined with peri­pher­al point-spread func­tion meas­ure­ments, the to­po­graphy of the fo­cused light on the ret­ina can be re­con­struc­ted. Com­mon uses for to­po­graphy in­clude mod­el­ing peri­pher­al re­frac­tion and de­tect­ing ret­in­al thick­en­ing com­monly as­so­ci­ated with eye dis­ease.
